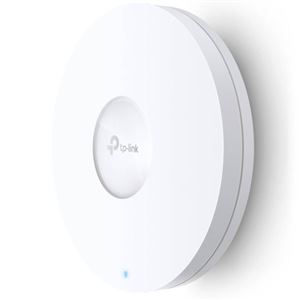

TP-LINK - Wireless N Access Point AX1800 Ceiling Mount DualBand TP-LINK EAP620 HD Wi-fi 6-1P Gigabit RJ45,802.3at PoE  MU-MIMO(EAP620 HD)

TP-LINK - Wireless N Access Point AX1800 Ceiling Mount DualBand TP-LINK EAP620 HD Wi-fi 6-1P Gigabit RJ45,802.3at PoE MU-MIMO (EAP620 HD)

Codice 3Plus: TPL0541
Codice EAN: 6935364030742
Codice Produttore: EAP620 HD

GENERALI
Access Point Wi-Fi 6 (802.11ax): Velocità Wi-Fi fino a 1775 Mbps (574Mbps in 2.4 GHz + 1.201Mbps in 5 GHz).†
Scenari ad alta densità: Il nuovo standard Wi-Fi 6 introduce le tecnologie MU-MIMO e OFDMA* che aumentano notevolmente la capacità della rete, fino a 4 volte maggiore rispetto al precedente standard, consentendo di gestire più dispositivi simultaneamente.‡
Dispositivo integrato Omada SDN: Omada Software Defined Networking è la nuova soluzione business networking che consente di gestire le reti Omada in Cloud: configurazioni Zero-Touch (ZTP)§, gestione centralizzata tramite Cloud e monitoraggio intuitivo della rete.
App Omada: L'intuitiva app Omada, per dispositivi Android e iOS, consente di accedere da remoto alla rete tramite Cloud, in qualunque momento, ovunque ti trovi.
Supporto PoE+: Alimentazione Power over Ethernet (802.3at) .
Seamless Roaming: Ideale per applicazioni streaming real-time, connessioni fluide senza cali di performance passando da un Access Point all'altro all'interno della stessa rete.△
Rete Ospiti: Autenticazione rapida e sicura tramite Captive Portal con molteplici opzioni di login.

CARATTERISTICHE HARDWARE
Interfaccia: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Tasto: Reset
Alimentazione:
• 802.3at PoE
• 12 V DC
Consumo energetico:
• EU: 12 W
• US: 13.5 W
Dimensioni ( L x P x A ): 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Tipo di antenna:
Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Tipo di montaggio: Ceiling /Wall Mounting (Kits included)

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11ax/ac/n/g/b/a
Frequenza: 2.4 GHz and 5 GHz
Signal rate: 5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Funzionalità wireless:
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming△
• Omada Mesh△
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Sicurezza wireless:
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Potenza di trasmissione:
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP)
• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)

GESTIONE
Omada App: Yes
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Avvisi e-mail: Yes
LED ON/OFF: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
Log di sistema locale e remoto: Local/Remote Syslog
SSH: Yes
Gestione web-based: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
• EAP620 HD
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
Requisiti di sistema: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Ambiente: • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
