Description

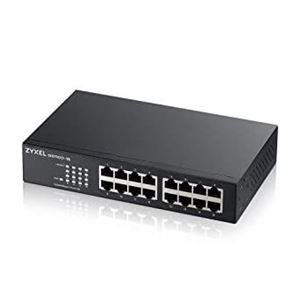

Product name: 16-port GbE Unmanaged Switch
Switch class: Unmanaged
Port Density
Total port count: 16
100/1000 Mbps: 16
Performance
Switching capacity (Gbps): 32
Forwarding rate (Mpps): 23.8
Packet buffer (byte): 525 K
MAC address table: 8 K
Jumbo frame: 9 K
Auto MDI/MDI-X: Yes
802.1p CoS: Yes
VLAN packet pass-through: Yes
Power
Input voltage: 100 - 240 V AC, 50/60 Hz
Power supply: Internal
Max. power consumption (watt): 10
Physical Specifications
Dimensions (WxDxH)(mm/in.): 215 x 133 x 42/8.46 x 5.24 x 1.65
Weight (kg/lb.): 0.9/1.98
Included accessories:
- Power cord
- Wall-mount kit
Rack mounting kit
Green Features
Fanless: Yes
Environmental Specifications
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Operating Humidity: 10% to 90% (non-condensing)
Storage Temperature: -40°C to 70°C/-40°F to 158°F
Storage Humidity: 10% to 95% (non-condensing)
MTBF (hr): 1,156,942
Heat dissipation (BTU/hr): 32.86
