CARATTERISTICHE HARDWARE
Interfaccia: 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af PoE and Passive PoE)
Physical security lock: Yes
Tasto: Reset
Alimentazione:
- 802.3af/at PoE
- 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Consumo energetico: 12.3 W
Dimensioni ( L x P x A ): 205.5 × 181.5 × 37.1 mm
Tipo di antenna: Internal Omni
- 2.4 GHz: 3× 3.5 dBi
- 5 GHz: 3× 4 dBi
Tipo di montaggio: Ceiling /Wall Mounting (Kits included)

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11ac/n/g/b/a
Frequenza: 2.4GHz and 5GHz
Signal rate:
- 5GHz: Up to 1300Mbps
- 2.4GHz: Up to 450Mbps
Funzionalità wireless:
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- Seamless Roaming*
- Omada Mesh*
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Sicurezza wireless:
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise,
- WPA-PSK / WPA2-PSK
Potenza di trasmissione:
- CE：
≤20 dBm (2.4GHz)
≤23 dBm (5GHz)
- FCC:
≤24 dBm (2.4 GHz)
≤24 dBm (5 GHz)

GESTIONE
Omada App: Yes
Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Avvisi e-mail: Yes
LED ON/OFF: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c
Log di sistema locale e remoto: Local/Remote Syslog
SSH: Yes
Gestione web-based: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:

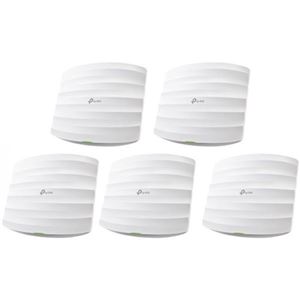

- AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
- Gigabit Passive PoE Adapter
- Power Cord
- Mounting Kits
- Installation Guide
Requisiti di sistema: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Ambiente:
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
