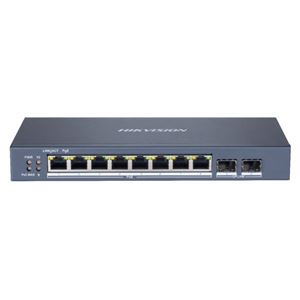

HIKVIS - SWITCH 10P LAN Gigabit  PoE HIKVISION DS-3E1510P-SI 8P PoE-2P SFP  -PoE 110W - L2 Smart Managed(DS-3E1510P-SI)

HIKVIS - SWITCH 10P LAN Gigabit PoE HIKVISION DS-3E1510P-SI 8P PoE-2P SFP -PoE 110W - L2 Smart Managed (DS-3E1510P-SI)

Codice 3Plus: HIK0106
Codice EAN: 6941264087427
Codice Produttore: DS-3E1510P-SI

Network Parameters
Port Number:
- 8 × Gigabit PoE ports
- 2 × Gigabit fiber optical ports
Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode:
- Standard mode (default)
- Extend mode
Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding Mode: Store-and-forward switching
MAC Address Table: 8 K
Internal Cache: 4.1 Mbits
Switching Capacity: 20 Gbps
Packet Forwarding Rate: 14.88 Mpps

PoE Power Supply
PoE Standard: IEEE 802.3af, IEEE 802.3at
PoE Power Pin: End-span: 1/2(-), 3/6(+)
PoE Port: Ports 1 to 8
Max. Port Power: 30 W
PoE Power Budget: 110 W

Software Function
Port Configuration: Port rate configuration, flow control, and ports enabling
Device Maintenance: Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
Link Aggregation: Static link aggregation supported
Long Range: Up to 300 m transmission
PoE Configuration:
- PoE watchdog: Ports 1 to 8 auto detect and restart the cameras that do not respond.
- PoE enabling: Support
Storm Control: Storm control of unknown unicast, multicast and broadcast
Port Mirroring: Support
QoS: WRR and SP scheduling and port priority
VLAN: 4094 VLANs
STP: STP and RSTP protocols
Port Isolation: Ports in isolation group cannot communicate with each other.
LLDP: LLDP protocol supported for port configuration, global configuration and neighbor discovery
Port Rate-Limiting: Rate-limiting for ingress and egress ports
SNMP: SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces

General
Dimension (W × H × D): 217.6 mm × 108.55 mm × 27.8 mm (8.57” × 4.27” × 1.09”)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Gross Weight: 1.3 kg (2.87 lb)
Net Weight: 1.21 kg (2.67 lb)
Power Consumption In Idle: 7 W
Shell: Metal material
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Operating Humidity: 5% to 95% (no condensation)
Power Supply: 48 VDC, 2.5 A
Max. Power Consumption: 120 W
Relative Humidity: 5% to 95% (no condensation)

Approval
EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
Safety: UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
