HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports
(Auto-Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
Dimensions (W X D X H) 8.2* 4.9* 1.0 in. (209* 126* 26mm)
Fan Quantity Fanless
Power Consumption Maximum: 6.42W (220V/50Hz)
Power Supply 100~240VAC, 50/60Hz
PERFORMANCE
Bandwidth/Backplane 16Gbps
MAC Address Table 8k
Packet Forwarding Rate 11.9Mpps
Jumbo Frame 9216 Bytes
SOFTWARE FEATURES
Quality of Service Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 Features IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List L2～L4 package filtering based on source and destination
MAC address, IP address, TCP/UDP ports, 802.1p,
DSCP, protocol and VLAN ID
Time Range Based
Security SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown unicast Storm Control
Management Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
OTHERS
Certification CE, FCC, RoHS

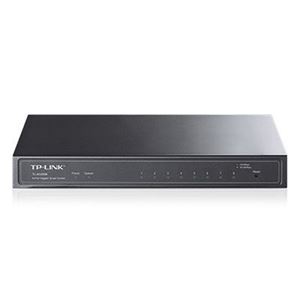

Package Contents TL-SG2008
Power Adapter
Quick Installation Guide
Resource CD
Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
